Jensen Swing S125 Soft Edge Swing Seat with Aluminum Core

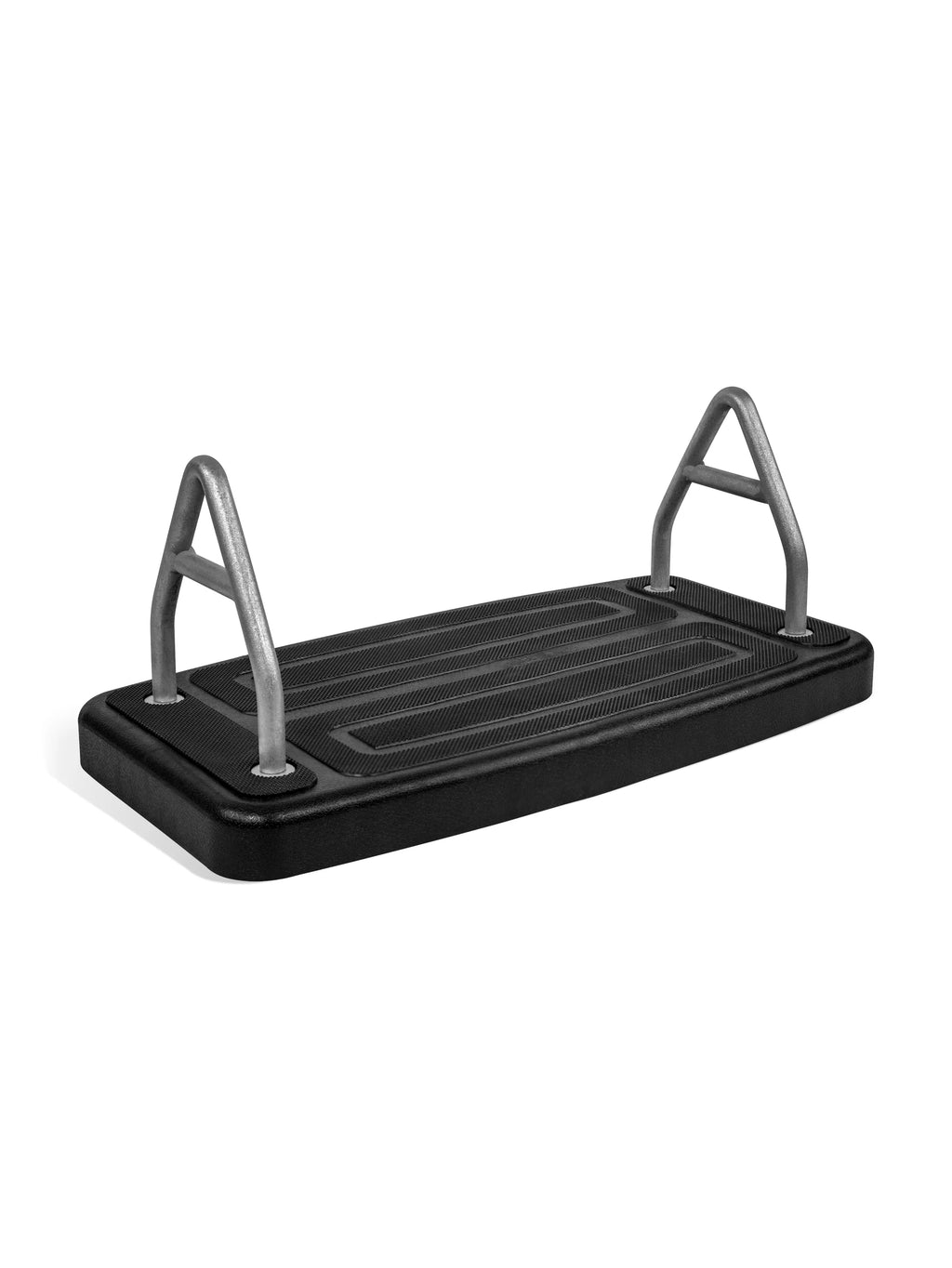

S125 European-Style Swing Seat

The S125 swing seat is a premium, European-style option constructed with a rubber injection-molded TPR (thermoplastic rubber) exterior over a cast rib-reinforced aluminum core, offering exceptional strength and long-term durability. A-frame one-piece brackets are secured with nylon and zinc-plated flat washers for added stability.

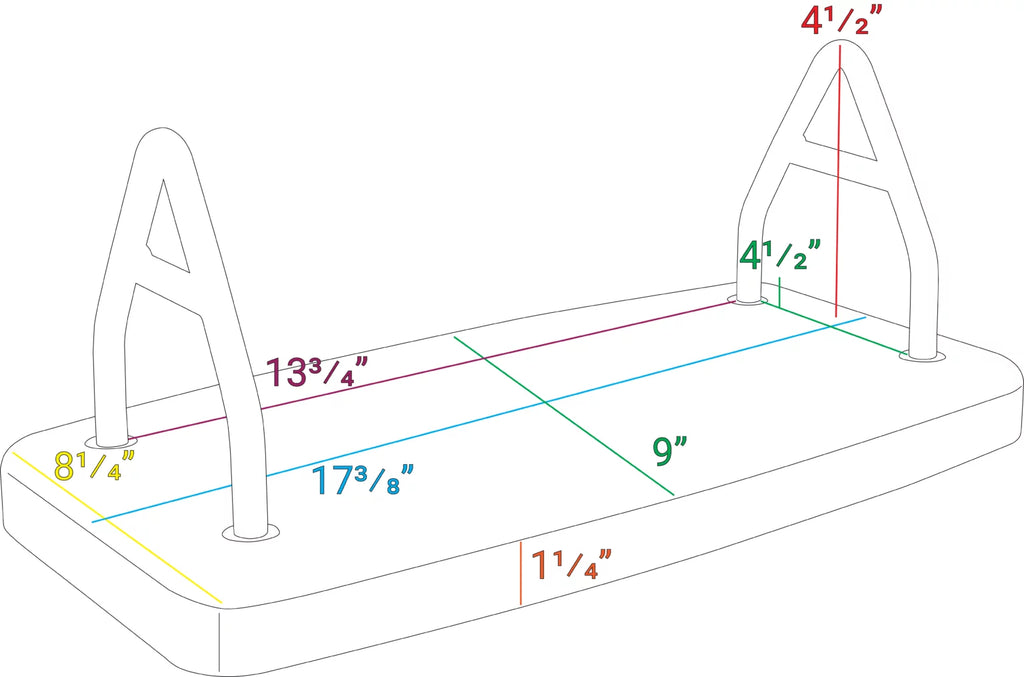

• Dimensions: 17 7/16” L x 9” W x 1 5/16” H

• Space Between Hangers: 13.75”

• Tensile Strength: 1,710 lbs

• Lifespan: 2 years in harsh conditions, up to 5 years in optimal conditions

• Recommended Chain Length: 5 ½’ for an 8′ swing frame; adjust proportionately for higher frames

Installation Overview

• Attach washers to both ends of the hanger and insert through seat openings. Add washers beneath and secure with lock nuts (max two threads visible).

• Connect swing chains to triangle hangers using H170 shackles or 3/8” S-hooks.

• Chains must be measured for even hanging and proper clearance from surfacing (~24" typical).

• Install on level ground with ASTM F1292-compliant resilient surfacing.

• Maintain 12” minimum clearance between seat and surface.

Maintenance Guidelines

• Inspect monthly and at the start/end of each season for:

  • Cracks or wear in rubber

  • Loose or missing hardware

  • Vandalism or rust

  • Chain wear or compromised fasteners

• Ensure shackles and S-hooks are properly closed and secure.

• Replace all seats purchased at the same time if one shows wear.

• Remove swings in temperatures below 0°F or above 100°F.

• Keep detailed maintenance records.

Always follow ASTM and CPSC safety standards for installation, use zones, and supervision. This swing is intended for children ages 4–12.
